Power BI Scanner Supported Features and Limitations

Overview of supported features

The following table shows the high-level features supported by the scanner:

Item Notes

Dashboard

Dataflows

Dataflows within dataflows are not supported. Dataflows Gen2 are not supported.

Dataset Table

External Source

See Supported Power Query functions, type Source.

External Source Columns

Only available for supported external sources.

Power Query Expressions

See Supported Power Query functions.

Report

Report Calculated Column

Report Column

Report Measure

Semantic Model (Dataset)

Workspace

Supported Power Query functions

The scanner recognizes the following Power Query functions when creating lineage information:

Power Query function Category

AmazonRedshift.Database

Source

AzureDataExplorer.Contents

Source

Csv.Document

Source

Databricks.Catalogs

Source

Excel.Workbook

Source

GoogleBigQuery.Database

Source

Json.Document

Source

OData.Feed

Source

Oracle.Database

Source

PowerPlatform.Dataflows

Source

Snowflake.Databases

Source

Sql.Database

Source

Sql.Databases

Source

Teradata.Database

Source

Value.NativeQuery

Source

Table.AddColumn

Table function

Table.AddIndexColumn

Table function

Table.Buffer

Table function

Table.Combine

Table function

Table.Distinct

Table function

Table.DuplicateColumn

Table function

Table.ExpandColumn

Table function

Table.ExpandListColumn

Table function

Table.FillDown

Table function

Table.FillUp

Table function

Table.FirstN

Table function

Table.FromRows

Table function

Table.Group

Table function

Table.GroupColumns

Table function

Table.NestedJoin

Table function

Table.PivotColumns

Table function

Table.PromoteHeaders

Table function

Table.RemoveColumns

Table function

Table.RemoveLastN

Table function

Table.RemoveRowsWithErrors

Table function

Table.RenameColumns

Table function

Table.ReorderColumns

Table function

Table.ReplaceErrorValues

Table function

Table.ReplaceValue

Table function

Table.SelectColumns

Table function

Table.SelectRows

Table function

Table.Skip

Table function

Table.Sort

Table function

Table.TransformColumns

Table function

Table.TransformColumnTypes

Table function

Table.UnpivotColumns

Table function

Supported Power Query patterns

The scanner generates lineage between dataset tables and their sources only when Power Queries use specific syntax patterns. These patterns vary by source technology and query construction.

General pules

Power Query parameters

The scanner recognizes Power Query parameters used in Power BI and replaces them with their current values.

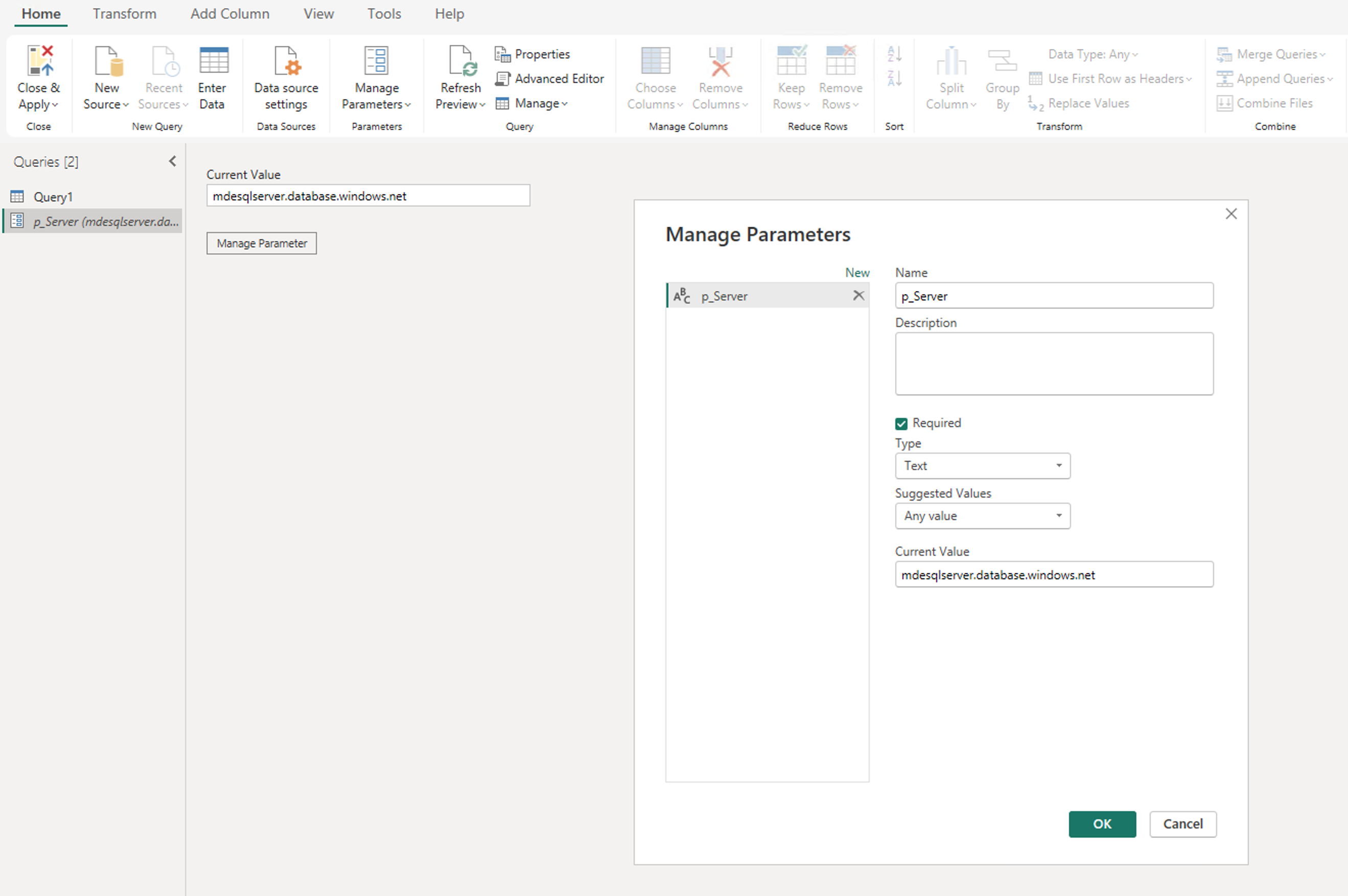

Example of a Power Query parameter definition:

Example of a Power Query parameter definition

Supported syntax by source technology

Microsoft SQL Server

Option 1: Using Sql.Database with direct table reference:

let
  // Connect to SQL
  Source = Sql.Database("ataccama.windows.com", "core"),
  // Select the table
  TableData = Source{[Schema="landing",Item="customer"]}[Data]
in
  TableData

Example using parameters:

let
  // Connect to SQL
  Source = Sql.Database(p_Server, p_DB),
  // Select the table
  TableData = Source{[Schema="landing",Item="customer"]}[Data]
in
  TableData

Option 2: Filtering for a specific schema and table directly after specifying the database:

let
    TableData = Sql.Database("ataccama.windows.com", "core"){[Schema="landing",
                                                    Item="customer"]}[Data]
in
    TableData

Option 3: Using Sql.Database with a custom query:

let
    Source = Sql.Database(p_Server, "MDETestLineageDB", [Query="SELECT AddressID, AddressLine1, AddressLine2, City, StateProvince, CountryRegion, PostalCode, rowguid, ModifiedDate#(lf)FROM MDETestLineageDB.SalesLT.Address;"])
in
    Source

Option 4: Using NativeQuery:

let
    QueryResult =
        Value.NativeQuery(
            Sql.Database("mdesqlserver.database.windows.net", "MDETestLineageDB"),
            "SELECT AddressID, AddressLine1, AddressLine2, City, StateProvince, CountryRegion, PostalCode, rowguid, ModifiedDate#(lf)FROM MDETestLineageDB.SalesLT.Address"
        )
in
    QueryResult

Alternative syntax for native queries:

let
    DBs = Sql.Databases(p_Server),
    SelectedDB = DBs{[Name = "MDETestLineageDB"]}[Data],
    QueryResult = Value.NativeQuery(SelectedDB, "SELECT * FROM SalesLT.Address")
in
    QueryResult

Snowflake

Option 1: Using Snowflake.Database with direct table reference:

let
    TableData =
        Snowflake.Database("myaccount.snowflakecomputing.com", "db1")
            {[Schema = "stage", Item = "customer"]}[Data]
in
    TableData

Option 2: Using NativeQuery:

let
    Result =
        Value.NativeQuery(
            Snowflake.Databases("myaccount.snowflakecomputing.com"){[Name = "db1"]}[Data],
            "SELECT cust_name
             FROM stage.customer
             WHERE cust_is is not null"
        )
in
    Result

Option 3: Multi-step filtering using Snowflake.Database:

let
    // Connect to Snowflake
    Source = Snowflake.Databases(
        "mycompany.region.azure.snowflakecomputing.com",
        "WAREHOUSE_NAME",
        [Role = "ROLE_NAME"]
    ),

    // Navigate to the target database, schema, and view
    TargetDatabase = Source{[Name = "MY_DATABASE", Kind = "Database"]}[Data],
    TargetSchema = TargetDatabase{[Name = "MY_SCHEMA", Kind = "Schema"]}[Data],
    TargetView = TargetSchema{[Name = "MY_VIEW", Kind = "View"]}[Data],

    // Example filter
    FilteredRows = Table.SelectRows(TargetView, each true),
in
    FilteredRows

Oracle

Option 1: Using Oracle.Database with a TNS name (Oracle_Demo in this example):

let
    Source = Oracle.Database("Oracle_Demo", [HierarchicalNavigation=true]),
    contentwriter = Source{[Schema="contentwriter"]}[Data],
    vw_customer_details = contentwriter{[Name="vw_customer_details"]}[Data]
in
    vw_customer_detail

Option 2: Using Oracle.Database with a full TNS entry:

let
    Source = Oracle.Database("(DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=oracle.ataccama.com)(PORT=1521))(CONNECT_DATA=(SERVER=DEDICATED)(SERVICE_NAME=dev)))", [HierarchicalNavigation=true]),
    contentwriter = Source{[Schema="contentwriter"]}[Data],
    vw_customer_details = contentwriter{[Name="vw_customer_details"]}[Data]
in
    vw_customer_detail

Databricks

Option 1: Using NativeQuery:

let
    Result =
        Value.NativeQuery(
            Databricks.Databases("adb-1234567890123456.7.azuredatabricks.net", "https"),
            "SELECT cust_name
             FROM stage.customer
             WHERE cust_id IS NOT NULL"
        )
in
    Result

Dataflows

Option 1: Using PowerPlatform.Dataflows:

let
    Source = PowerPlatform.Dataflows(null),
    Workspaces = Source{[Id="Workspaces"]}[Data],
    #"1de33d3b-2846-4634-9ab8-f83513213a63" = Workspaces{[workspaceId="1de33d3b-2846-4634-9ab8-f83513213a63"]}[Data],
    #"55e33c65-0f97-49d8-be41-3e3f8d343291" = #"1de33d3b-2846-4634-9ab8-f83513213a63"{[dataflowId="55e33c65-0f97-49d8-be41-3e3f8d343291"]}[Data],
    SapXLS_ = #"55e33c65-0f97-49d8-be41-3e3f8d343291"{[entity="SapXLS",version=""]}[Data]
in
    SapXLS_

Excel Workbooks

Option 1: Using Excel.Workbook:

let
  Source = Excel.Workbook(Web.Contents("https://azureataccama-my.sharepoint.com/personal/com/Documents/Apps/Microsoft Power Query/Uploaded Files/sap_hana_db_lineage_questionnaire.xlsx"), null, true),
  #"Navigation 1" = Source{[Item = "Sheet1", Kind = "Sheet"]}[Data],
  #"Changed column type" = Table.TransformColumnTypes(#"Navigation 1", {{"Column1", type text}, {"Column2", type text}, {"Column3", type text}, {"Column4", type text}})
in
  #"Changed column type"

CSV Files

Option 1: Using Csv.Document with Web.Contents:

let
  Source = Csv.Document(Web.Contents("https://azureataccama-my.sharepoint.com/personal/com/Documents/Apps/Microsoft Power Query/Uploaded Files/flows.csv"), [Delimiter = ",", Columns = 6, QuoteStyle = QuoteStyle.None]),
  #"Changed column type" = Table.TransformColumnTypes(Source, {{"Column1", type text}, {"Column2", type text}, {"Column3", type text}, {"Column4", type text}, {"Column5", type text}, {"Column6", type text}}),
  #"Renamed columns" = Table.RenameColumns(#"Changed column type", {{"Column5", "id_join"}})
in
  #"Renamed columns"

Option 2: Using Csv.Document with File.Contents:

let
  Source = Csv.Document(File.Contents("c:\personal\com\flows.csv"), [Delimiter = ",", Columns = 6, QuoteStyle = QuoteStyle.None]),
  #"Changed column type" = Table.TransformColumnTypes(Source, {{"Column1", type text}, {"Column2", type text}, {"Column3", type text}, {"Column4", type text}, {"Column5", type text}, {"Column6", type text}}),
  #"Renamed columns" = Table.RenameColumns(#"Changed column type", {{"Column5", "id_join"}})
in
  #"Renamed columns"

Other supported sources

Examples for Teradata, Google BigQuery, Amazon Redshift, and OData.Feed are in the works.

Joining sources

Table.NestedJoin

Option 1: Joining standard sources:

let
    Source = Csv.Document(File.Contents("C:\Users\frantisek.budias\Documents\file1.csv"),[Delimiter=",", Columns=2, Encoding=1252, QuoteStyle=QuoteStyle.None]),
    #"Promoted Headers" = Table.PromoteHeaders(Source, [PromoteAllScalars=true]),
    #"Changed Type" = Table.TransformColumnTypes(#"Promoted Headers",{{"mycol1", Int64.Type}, {" ""mycol2""", Int64.Type}}),
    #"Merged Queries" = Table.NestedJoin(#"Changed Type", {"mycol1"}, file2, {"mycol3"}, "file2", JoinKind.LeftOuter),
    #"Merged Queries1" = Table.NestedJoin(#"Merged Queries", {"mycol1"}, file3, {"mycol4"}, "file3", JoinKind.LeftOuter)
in
    #"Merged Queries1"

Option 2: Joining sources from a Dataflow:

let
    Source = PowerPlatform.Dataflows(null),
    Workspaces = Source{[Id="Workspaces"]}[Data],
    #"1de33d3b-2846-4634-9ab8-f83513213a63" = Workspaces{[workspaceId="1de33d3b-2846-4634-9ab8-f83513213a63"]}[Data],
    #"55e33c65-0f97-49d8-be41-3e3f8d343291" = #"1de33d3b-2846-4634-9ab8-f83513213a63"{[dataflowId="55e33c65-0f97-49d8-be41-3e3f8d343291"]}[Data],
    assets_ = #"55e33c65-0f97-49d8-be41-3e3f8d343291"{[entity="assets",version=""]}[Data],
    #"Merged Queries" = Table.NestedJoin(assets_, {"Column1"}, flows, {"id_join"}, "flows", JoinKind.LeftOuter),
    #"Expanded flows" = Table.ExpandTableColumn(#"Merged Queries", "flows", {"Column1", "Column2", "Column3", "Column4", "id_join", "Column6"}, {"flows.Column1", "flows.Column2", "flows.Column3", "flows.Column4", "flows.id_join", "flows.Column6"})
in
    #"Expanded flows"

Known limitations

Variables declared within Power Query

Variables declared and referenced within the same Power Query are not supported:

let
    MyQuery = "SELECT AddressID, AddressLine1, AddressLine2, City, StateProvince, CountryRegion, PostalCode, rowguid, ModifiedDate#(lf)FROM SalesLT.Address;",
    Source = Sql.Database(p_Server, db, [Query=MyQuery])
in
    Source

Parameter concatenation in queries

Parameters combined with other parameters or strings (.." & p_Schema & "..) are not supported by default:

let
    Source = Sql.Database(p_Server, "MDETestLineageDB", [Query="SELECT AddressID, AddressLine1, AddressLine2, City, StateProvince, CountryRegion, PostalCode, rowguid, ModifiedDate#(lf)FROM " & p_Schema & ".Address;"])
in
    Source

As a workaround, configure the substituteExpressions parameter in your scan plan JSON file to resolve concatenated expressions:

"substituteExpressions": [
{
"toExpression": "SalesLT",
"fromExpression": "\" & p_Schema & \""
}
]

Cross-references within the same dataset

Dataset tables that reference other tables within the same dataset are not supported:

let
	Source = Sales
in
	Source

As a workaround, create a new dataset table named "Sales" that duplicates the Power Query from the "Source" table.

Loop-based filtering for server, database, or schema

Using loops to identify servers, databases, or schemas is not supported. Note that using loops to filter data does not affect lineage.

let
	Source = Sql.Database(p_Server, "MDETestLineageDB"),
	SchemaFiltered = Table.SelectRows(Source, each [Schema] = "SalesLT")
in
	SchemaFiltered

Calendar and date functions

Functions such as List.Dates and other calendar functions are not supported. These typically serve as time dimension sources and do not affect lineage tracking.

Function body declarations using '⇒'

Power Query function definitions using the ⇒ operator are not supported:

Source = (Parameter as binary) =>
    let
        ...
    in
        ...

Microsoft Power BI limitations

To harvest lineage from a Power BI report, both of the following conditions must be met:

  1. The report must be downloadable.

  2. The semantic model used by the report must also be downloadable.

Microsoft imposes certain restrictions that can prevent downloading. For details, refer to the official Microsoft documentation:

API rate limits

Power BI allows 500 API requests per hour. For more information, see Admin - WorkspaceInfo GetScanResult.
