Prepare AWS Infrastructure

Ataccama ONE edge instances require the same underlying AWS infrastructure in both Ataccama-managed on AWS and self-managed AWS deployments. This includes a VPC with public and private subnets, NAT egress, and an S3 bucket with an IAM role the edge can assume to write processing results.

Complete the steps on this page before continuing with your chosen deployment option.

Prerequisites

  • An AWS account. We recommend using a dedicated account to isolate edge workloads.

  • IAM permissions to create VPCs, subnets, gateways, route tables, S3 buckets, and IAM roles.

  • A chosen AWS Region and three availability zones (AZ) within it. For example, us-east-1 with zones a, b, c.

Configure networking

Set up a virtual private cloud (VPC) with public and private subnets across three availability zones, an internet gateway for ingress/egress, and NAT gateways so private workloads can reach the internet.

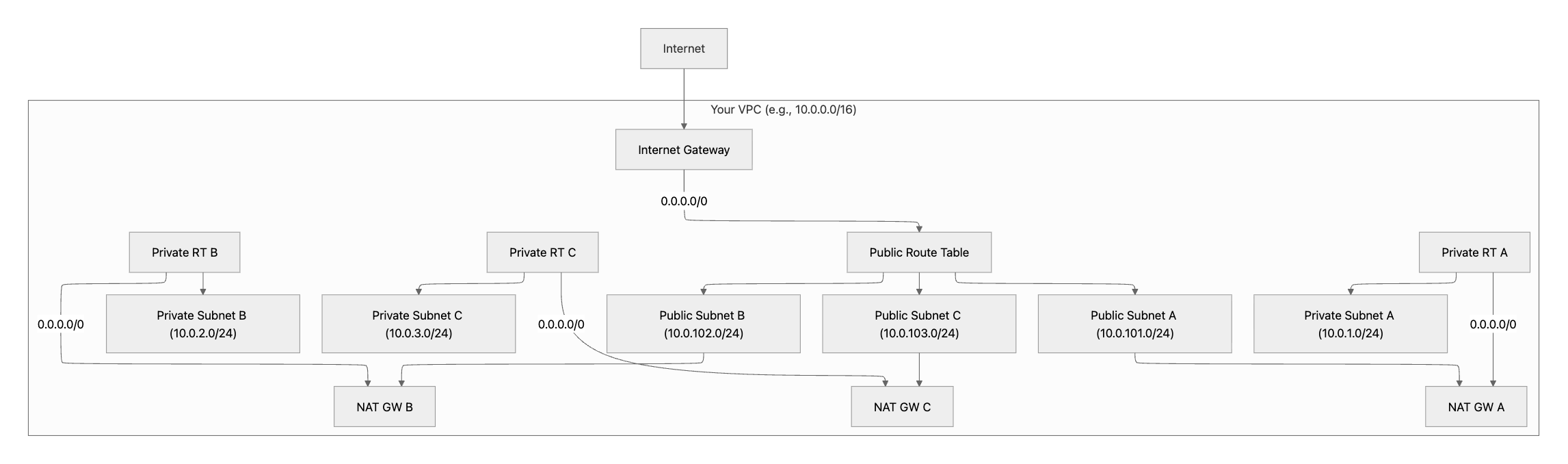

Target VPC Architecture

Follow the AWS documentation to complete these steps, using the values from [Network configuration values]:

  1. Create a VPC using the CIDR from CIDR allocation.

    1. Enable DNS hostnames and DNS resolution.

  2. Create three public and three private subnets, one pair per availability zone. See Subnet layout.

  3. Create and attach an internet gateway to the VPC.

  4. Allocate Elastic IPs, one per NAT gateway you plan to deploy.

  5. Create NAT Gateways in the public subnets, attaching one Elastic IP each. See NAT gateway strategy.

  6. Configure route tables:

    1. The public route table sends 0.0.0.0/0 to the internet gateway; associate it with all public subnets.

    2. Each private route table sends 0.0.0.0/0 to a NAT gateway; associate one with each private subnet.

  7. Tag all resources according to Tagging.

VPC endpoint provisioning depends on the deployment model, see VPC endpoints.

Networking configuration values

The following values apply to the edge networking layout.

CIDR allocation

A /16 VPC with /24 subnets provides ample headroom and avoids overlap with most corporate networks:

  • VPC: 10.0.0.0/16 (65,536 IPs)

  • Public subnets: 10.0.101.0/24, 10.0.102.0/24, 10.0.103.0/24

  • Private subnets: 10.0.1.0/24, 10.0.2.0/24, 10.0.3.0/24

Ensure CIDR blocks don’t overlap with existing corporate networks or peered VPCs.

Subnet layout

  • Three public and three private subnets, one pair per availability zone.

  • Disable auto-assign public IPs on private subnets.

  • Enable auto-assign public IPs on public subnets only if needed for load balancers or bastion hosts.

NAT gateway strategy

  • Production: One NAT gateway per availability zone. Each private route table sends traffic to the NAT gateway in the same AZ to avoid cross-AZ data charges and dependencies.

  • Non-production: A single shared NAT gateway in one public subnet, used by all private subnets. Cheaper, but introduces a single point of failure.

Tagging

Apply consistent tags to all resources for cost tracking and automation:

  • Name

  • Environment (prod or nonprod)

  • Application=edge

  • Owner

  • CostCenter

VPC endpoints

VPC endpoint requirements differ between Ataccama-managed and self-managed deployments.

Ataccama-managed edges

The VPC provided must not contain VPC endpoints for the following AWS services. These are created and managed by Ataccama as part of the edge deployment:

  • S3 gateway endpoint:

    • com.amazonaws.<region>.s3

  • Interface endpoints:

    • com.amazonaws.<region>.kms (KMS)

    • com.amazonaws.<region>.secretsmanager (Secrets Manager)

    • com.amazonaws.<region>.sqs (SQS)

    • com.amazonaws.<region>.logs (CloudWatch Logs)

    • com.amazonaws.<region>.sts (STS)

    • com.amazonaws.<region>.monitoring (CloudWatch)

If the edge VPC runs in a different AWS region than your Ataccama control plane, additional cross-region VPC endpoints are required; see Cross-region access to the control plane. Ataccama only provisions endpoints in the edge VPC region; the cross-region setup is the customer’s responsibility.

Self-managed edges

The Terraform module does not create VPC endpoints for self-managed edges. By default, AWS API traffic from the edge leaves your VPC through the NAT gateway.

You should provision your own VPC endpoints in the same AWS region as the edge VPC to keep this traffic on the AWS network — this reduces NAT data-transfer costs, lowers latency, and avoids exposing AWS API calls to the public internet:

  • S3 gateway endpoint, attached to the private route tables:

    • com.amazonaws.<region>.s3

  • Interface endpoints, attached to the private subnets, with private DNS enabled:

    • com.amazonaws.<region>.kms (KMS)

    • com.amazonaws.<region>.secretsmanager (Secrets Manager)

    • com.amazonaws.<region>.sqs (SQS)

    • com.amazonaws.<region>.logs (CloudWatch Logs)

    • com.amazonaws.<region>.sts (STS)

    • com.amazonaws.<region>.monitoring (CloudWatch)

  • A security group on the interface endpoints that allows TCP 443 from the VPC CIDR or the private subnets CIDR, depending on your setup.

Apply the endpoint policy from vpc-endpoint-policy.json — shipped in your edge deployment bundle — to each endpoint. The policy scopes access to the edge IAM roles, the Ataccama platform access role, and the customer-provided roles defined for your tenant.

If the edge VPC runs in a different AWS region than your Ataccama control plane, additional cross-region VPC endpoints are required; see Cross-region access to the control plane.

NAT-only egress is supported but highly discouraged — although AWS API calls are TLS-encrypted in transit, NAT routing exposes them to public-internet paths and incurs NAT data-transfer charges. Only use it if you cannot provision VPC endpoints in your environment.

Cross-region access to the control plane

This subsection applies if the edge VPC runs in a different AWS region than your Ataccama control plane. It applies to both Ataccama-managed and self-managed deployments — cross-region VPC endpoints are always the customer’s responsibility.

When the edge runs in a different region from the control plane, the edge needs to reach control-plane services in the control plane region for cross-region data exchange. Most AWS services don’t support cross-region access through VPC endpoints; see the AWS PrivateLink cross-region support matrix.

To keep this cross-region traffic on the AWS network, do one of the following:

  • Provision the same set of VPC endpoints in a VPC in the control plane region and peer it with your edge VPC.

  • Route the traffic through your own internal network with VPC endpoint connectivity into the control plane region.

In both cases, configure DNS so the edge resolves AWS service hostnames in the control plane region to the private endpoint IPs — typically via Route 53 Resolver forwarding rules or your own DNS service.

Validate networking

Confirm the following before proceeding:

  • VPC exists with the chosen CIDR.

    • DNS hostnames and DNS resolution are enabled.

  • Three public (10.0.101/102/103.0/24) and three private subnets (10.0.1/2/3.0/24) exist across three AZs.

    • Auto-assign public IPs is off for private subnets.

    • If needed, auto-assign public IPs is on for public subnets.

  • Internet gateway is attached.

    • The public route table contains 0.0.0.0/0 → Internet gateway and is associated with all public subnets.

  • NAT gateway(s) exist in public subnets with attached Elastic IPs.

    • Private route tables contain 0.0.0.0/0 → NAT gateway and are associated with private subnets.

    • In production, each private route table routes to the NAT gateway in the same AZ to avoid cross-AZ dependencies.

  • Outbound HTTPS works from each private subnet (curl -I example.com succeeds from a test instance).

  • All resources are consistently tagged and named to support automation and auditability.

Create the EFS service-linked role

The AWS account where the edge is deployed needs a service-linked role for Amazon Elastic File System (EFS):

aws iam create-service-linked-role --aws-service-name elasticfilesystem.amazonaws.com

For background, see Using service-linked roles for Amazon EFS.

Create the S3 bucket

The edge uses a customer-owned S3 bucket to store processing results and temporary data.

Follow the AWS documentation to create a bucket, using the values from S3 configuration values.

S3 configuration values

Bucket name

Use a name of the form <edge-instance-name>-s3-<random-suffix>. The random suffix ensures the required global uniqueness.

Bucket settings

  • Region: Match the AWS Region where you created the VPC.

  • Block Public Access: Keep all blocks enabled.

  • Versioning: Enable for audit trail and recovery.

Tags

Apply the edge identifier tag and your standard organizational tags:

  • ataccama:edge:customer-provided:instance-name: <edge-instance-name>

Record the bucket name and ARN: you’ll need them when configuring the IAM role.

Create the IAM role

Follow the AWS documentation to create a custom IAM role for the edge to use when reading from and writing to the S3 bucket.

When configuring the role:

  • Skip permissions selection.

  • Use the trust policy from Trust policy.

  • Name the role <edge-instance-name>-s3-role.

  • Attach the policy from S3 access policy as an inline policy named s3access.

  • Tag the role with ataccama:edge:customer-provided:instance-name: <edge-instance-name>.

Trust policy

This trust policy lets principals in your AWS account assume the role. Replace <ACCOUNT_ID> with your AWS account ID.

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::<ACCOUNT_ID>:root"
      },
      "Action": [
        "sts:AssumeRole",
        "sts:TagSession"
      ]
    }
  ]
}

S3 access policy

This policy grants the edge the actions it needs against your bucket and its objects. Replace <BUCKET_NAME> with the bucket name.

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:GetObject",
        "s3:PutObject",
        "s3:ListBucket",
        "s3:DeleteObject",
        "s3:AbortMultipartUpload"
      ],
      "Resource": [
        "arn:aws:s3:::<BUCKET_NAME>",
        "arn:aws:s3:::<BUCKET_NAME>/*"
      ]
    }
  ]
}

Verify the role

Open the role in the IAM console and confirm:

  • The trust policy matches Trust policy.

  • The s3access inline policy is attached.

  • The ataccama:edge:customer-provided:instance-name tag is set.

Record the role ARN for later configuration.

Required information for next steps

Record these values. You’ll need them when configuring the edge instance.

  • AWS account ID

  • AWS Region

  • VPC ID

  • Private subnet IDs (all three)

  • Public subnet IDs (all three)

  • S3 bucket name and Region

  • IAM role ARN

Next steps

Deploy your edge instance:
