RDM Example Project on macOS

The following guide shows you how to install and run the latest RDM example project on macOS. The example project provides a preconfigured environment for working through RDM tutorials.

For Windows instructions, see RDM Example Project on Windows.

Prerequisites

Install and run Docker Desktop.
Make sure ports 8060, 8061, 8083, and 5432 are available on your machine.

To check if a port is in use, run lsof -i :<port_number> in Terminal. No output means the port is available.

Step 1: Download PostgreSQL and Keycloak Docker images

Use PostgreSQL and Keycloak Docker images to easily deploy the services needed for the RDM example project.

The Docker images are intended for demonstration purposes only and are not meant for production environments. By using these, you are accepting Keycloak and PostgreSQL licenses.

Keep in mind that the third-party software used in the Docker images might not be up-to-date and might therefore pose a security risk.

Download MDM and RDM Example Project Plugins from the Support Service Desk.

Step 2: Download and extract builds

Download the corresponding build packages of RDM (web application and the server, Linux variant) and ONE Desktop (macOS variant) from the Support Service Desk.

Extract packages

Install ONE Desktop. Double-click the downloaded ONE Desktop package and drag it to the Applications folder instead.
Create the required folders in the ONE Desktop installation directory:
```
cd "/Applications/ONE Desktop.app/Contents/Eclipse"
mkdir -p macos-example rdm pginit
```
Replace macos-example with your preferred workspace folder name.
Extract the downloaded packages:
```
unzip path/to/rdm-assembly-xxxxx.zip -d rdm
unzip path/to/pginit17.zip -d pginit
```
Replace path/to/ with the location of your downloaded files and xxxxx with the version number of your packages.
Verify the folder structure:
```
ls rdm pginit
```

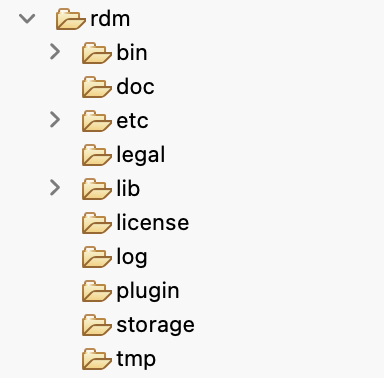

Your folder structure should match the following. This ensures the scripts in the example project Files > bin work without issues.

Details
Grant the necessary permissions:
```
cd "path/to/macos-example"
chmod -R 777 workspace
chmod -R +x rdm/bin
```
Replace path/to/macos-example with the absolute path to your folder (for example, /Applications/ONE Desktop.app/Contents/Eclipse/macos-example).

This sets full read, write, and execute permissions for all users on the folder contents. This is acceptable for a local demo environment but is not advisable in production.

Step 3: Configure RDM

Navigate to rdm/etc and open application.properties. This is the main configuration file for RDM.

Define the license path to point to the correct location, save, and exit.

Step 4: Start the Docker containers

Load and run the Keycloak and PostgreSQL Docker containers.

Navigate to the folder where you downloaded the Docker images and load them into your local Docker image store:
```
docker load -i kcMac.tar
docker load -i pg17Mac.tar
```
If loading was successful, the following output appears:
```
Loaded image: harbor.ataccama.dev/one/keycloak:26.2.0-14
Loaded image: postgres:17
```
Run the PostgreSQL container:
```
docker run -d --name pg \
  -p 5432:5432 \
  -e POSTGRES_PASSWORD=Testtest1 \
  -v "path/to/macos-example/pginit:/docker-entrypoint-initdb.d" \
  postgres:17
```
Replace path/to/macos-example with the absolute path to your folder (for example, /Applications/ONE Desktop.app/Contents/Eclipse/macos-example).

If the command was successful, the container ID is returned in response.

If you get a "mounts denied" error, you need to allow Docker to access the workspace folder. See Docker file sharing documentation for instructions.

Run the Keycloak container:

docker run -d --name kc \
  -p 8083:8080 \
  -e KC_CLIENTS_REDIRECT_URIS_WILDCARDED=true \
  -e KC_CLIENTS_WEB_ORIGINS_WILDCARDED=true \
  -e KC_TEST_USERS_INCLUDED=true \
  -e KC_SSL_REQUIRED=NONE \
  harbor.ataccama.dev/one/keycloak:26.2.0-14 \
  start --db=dev-file

Verify that both containers are running:

docker ps

The expected output is as follows:

CONTAINER ID   IMAGE                                            CREATED              STATUS                PORTS                                       NAMES
6bcffaf2c5e2   harbor.ataccama.dev/one/keycloak:26.2.0-14       10 seconds ago       Up 10 seconds         0.0.0.0:8083->8080/tcp                      kc
a3c16a14aecc   postgres:17                                      About a minute ago   Up About a minute     0.0.0.0:5432->5432/tcp                      pg

Step 5: Start the example project

If you are preparing a project for Ataccama Cloud and you need to add new server or runtime configuration, you need to switch from the default configuration to a portal.serverConfig configuration with cloud-specific configuration options.

For more information, see deployment-guide:rdm-project-runtime-configurations.adoc.

Start ONE Desktop. Confirm that you want to run the application.

For detailed instructions, see Install ONE Desktop.
When prompted to select your workspace, point it to the folder you created earlier (for example, macos-example).
In the upper-right corner, switch to the ONE Desktop perspective.
In the Model Explorer, select New and then Model Project.
In Use template, select Reference Data Manager - Banking Example and select Finish.

If you choose a custom project name, avoid using spaces to simplify working with file paths. If your project name contains spaces, make sure to enclose paths in quotes.
Once the project loads in the Model Explorer, navigate to Files/bin.
Open start-server.sh in a text editor and replace the last line (the start command) with the following:
```
"/path/to/macos-example/rdm/bin/start.sh" -config="/path/to/macos-example/workspace/<project_name>/Files/etc/rdm.serverConfig" start
```
Replace path/to/macos-example with the absolute path to your workspace folder (for example, "/Applications/ONE Desktop.app/Contents/Eclipse/macos-example") and <project_name> with the name of your project folder (by default, Reference Data Manager - Banking Example).
Open start-rdm.sh in a text editor and replace the last line (the start command) with the following:
```
/path/to/macos-example/rdm/bin/start.sh
```
Replace path/to/macos-example with the absolute path to your workspace folder (for example, /Applications/ONE Desktop.app/Contents/Eclipse/macos-example).

Save and close both files before proceeding. If a file is still open in ONE Desktop, you cannot run it.
Start the RDM Server. Open a Terminal window and run:
```
bash "path/to/macos-example/workspace/<project_name>/Files/bin/start-server.sh"
```
Replace path/to/macos-example with the absolute path to your workspace folder and <project_name> with the name of your project folder.

The RDM Server is ready once the following message appears:
```
Started ... in <number> seconds
```

Start the RDM Web Application. Open a new Terminal window and run:

bash "path/to/macos-example/workspace/<project_name>/Files/bin/start-rdm.sh"

Replace path/to/macos-example and <project_name> as before.

The RDM Web Application is ready once the following message appears:

Started ... in <number> seconds

You can also run the scripts from ONE Desktop by double-clicking them in Files/bin in the Model Explorer. However, as ONE Desktop displays one script at a time in the console, you can stop the running process using Ctrl+C or by finding and shutting it down (see Stop a process manually).

Once everything starts, open one of the following in your browser:
- http://localhost:8060 — RDM Web Application
- http://localhost:8060/admin — RDM Admin Console
Log in with the following credentials:
- Username: admin
- Password: admin
To access the RDM Online Server Web Console, open http://localhost:8061 in your browser.

Configure resources (optional)

For additional work on configuration, in the File Explorer perspective, define the following resources:

Database resource rdm_db with attributes:
- Host: localhost
- Port: 5432
- Database name: rdm
- Username: rdm
- Password: rdm
Server resource rdmapp with attributes:
- URL: http://localhost:8060/admin
- User: admin
- Password: admin
Server resource server with attribute:
- URL: http://localhost:8061

Step 6: Stop the example project

When you are finished working with the RDM example project:

Stop the RDM Server and Web Application by closing their terminal windows.
Stop the Docker containers by running:
```
docker stop kc
docker stop pg
```

Tips and troubleshooting

Restart after the initial setup

If you have already completed the initial setup and just need to restart:

Start the Docker containers:
```
docker start pg
docker start kc
```
Start ONE Desktop, then run start-server.sh and start-rdm.sh as described in Step 5: Start the example project.

Stop a process manually

If you need to stop a running server, or if a server fails to start because a port is already in use, find and stop the process:

lsof -i :<port_number>
kill <PID>

Replace <port_number> with the port used by the server and <PID> with the process ID from the lsof output.

View logs

The default logging file path is defined using the DEFAULT_JVM_OPTS property in the /rdm/bin/start.sh file.
